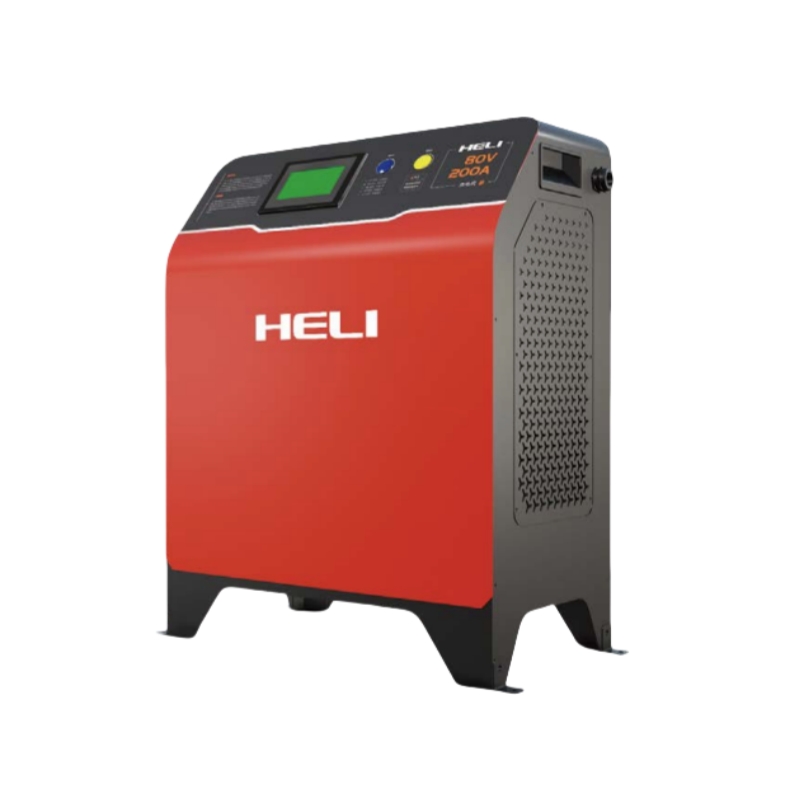

Heli Electric Forklift Charger 80V 200A Bench Charger

$1,599.00

High Output Efficiency: Maximum output power up to 20KW, with an integrated module using a mobile full-bridge soft-switching circuit for efficient output.
High Efficiency and Energy Saving: Output efficiency exceeds 94%, utilizing a three-phase PFC circuit with PFC functionality, offering a power factor greater than 0.99 (PF > 0.99).
Air-Cooled Heat Dissipation: Uses an air-cooled dissipation method, small in size, easy to move, and occupies minimal space.
Convenient Operation and Smart Features: Supports touch screen direct modification of input parameters and settings for user-friendly operation.
Compact Design: Modular design with simplified components, easy to maintain and support for after-sales services.

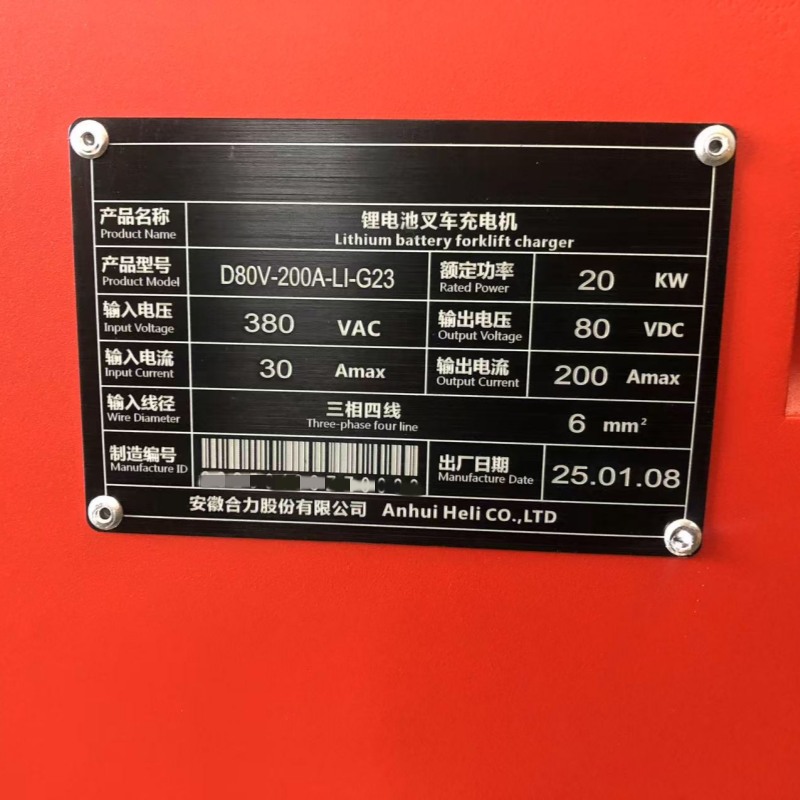

Model	BFC8020001
Name	Heli Electric Forklift Charger 80V 200A.
Application	Heli Forklift Agreement.
Rated Input Voltage	380Vac
Input Voltage Range	380V±15%
Input Connector	Four-pole, five-pole industrial plug.
Input Line Length	3000±100mm
Frequency Range	47-63Hz
Input Current	≤30A Max
Efficiency	≥93%
Power Factor	≥0.99
Rated Output Voltage	80V
Output Voltage Range	30-80V
Rated Output Current	200A
Output Power	20Kw
MTBF	＞80000H
Communication Method	CAN2.0
Communication Protocols	Customized
Dimensions	L622W296H689mm
Weight	57±2Kg
Input Overvoltage Protection	Yes
Input Undervoltage Protection	Yes
Overtemperature Protection	Yes
Output Overvoltage Protection	Yes

Our chargers are compatible with Heli forklifts, including Li-ion, IC, and Electric Forklifts.
They support Narrow Aisle Forklifts and Warehouse Equipment.
Our chargers can also power Heavy Forklifts, Tractors, and Cushion Tire Forklifts.
They are suitable for Rough Terrain Forklifts and Automated Guided Vehicles (AGVs).
We offer customizable charging protocols for other forklift brands.
Our solution ensures reliable, tailored charging for various vehicle types and applications.

Golf Cart Lithium Battery Charger also Compatible with

Any Customization OEM/ODM Accepted
