What Does BMS Mean? Battery Management System Explained

BMS (Battery Management System) Explained: Principles and Functions

What does BMS mean in the context of modern energy systems? BMS stands for Battery Management System, the central control unit of a battery pack. Often referred to as the “brain of the battery,” a BMS plays a vital role in monitoring, protecting, and optimizing battery performance to ensure safe and efficient operation.

Core Principle of BMS

The operational logic of a BMS follows a closed-loop process consisting of four main stages:
Data Acquisition → State Estimation → Control Execution → Communication Interface

1. Data Acquisition (Perception Layer)

• Voltage Monitoring: Continuously tracks the voltage of individual cells to prevent overcharging or over-discharging.

• Current Monitoring: Measures charging and discharging currents via shunt or Hall sensors, essential for SOC (State of Charge) estimation.

• Temperature Monitoring: NTC/PTC sensors detect the temperature of cells, modules, and the environment to prevent thermal runaway.

• Insulation Monitoring: Checks insulation resistance between the high-voltage system and ground to reduce leakage risk.

2. State Estimation (Algorithm Layer)

• SOC (State of Charge):
  Uses Ah counting with open-circuit voltage (OCV) correction to estimate remaining charge. High-end systems apply Kalman filtering or machine learning for improved accuracy.

• SOH (State of Health):
  Evaluates battery degradation based on capacity loss (e.g., from 100Ah to 80Ah) and rising internal resistance.

• SOP (State of Power):
  Determines the maximum allowable charging/discharging power at a given moment, avoiding system overload.

3. Control Execution (Protection Layer)

• Balancing Control:

  • Passive Balancing: Discharges high-voltage cells via resistors (typical current 50–200mA).

  • Active Balancing: Transfers energy via DC-DC converters or capacitors (current ≥2A), improving efficiency.

• Relay Control:
  Manages the connection/disconnection of charge/discharge circuits in response to over-voltage, under-voltage, or overcurrent events.

• Thermal Management:
  Works with liquid or air cooling to keep the battery within optimal operating temperatures (e.g., 25–40°C).

4. Communication Interface (Network Layer)

• CAN Bus: Enables data exchange with vehicle control units (VCU), chargers, and other devices. (e.g., Tesla BMS uses CAN FD at 1 Mbps).

• Wireless Monitoring: Some energy storage BMS units support 4G/5G for remote diagnostics and control.

Core Functions of BMS

1. Safety Protection

2. Performance Optimization

• Extended Battery Life:
  Cell balancing prevents localized overcharge or deep discharge.

• Accurate Range Estimation:
  Advanced SOC algorithms (e.g., <3% error in Tesla systems) enable reliable range predictions.

• Environmental Adaptability:
  Heating at sub-zero temps (e.g., -20°C) and power-limiting at high temps (e.g., 50°C) enhance operational flexibility.

3. Data Logging and Diagnostics

• Records historical data such as cycle counts, temperature extremes, and fault codes.

• Supports OTA (over-the-air) updates for algorithm improvements and bug fixes.

Summary

What is BMS in a battery system? It is the intelligent controller that ensures operational safety, performance, and longevity. The primary functions of a BMS can be summarized as:

✅ Real-time monitoring (voltage, current, temperature)
✅ Precise calculation (SOC, SOH, SOP)
✅ Active protection (overcharge, over-discharge, thermal issues)
✅ Performance optimization (balancing, thermal control, range extension)

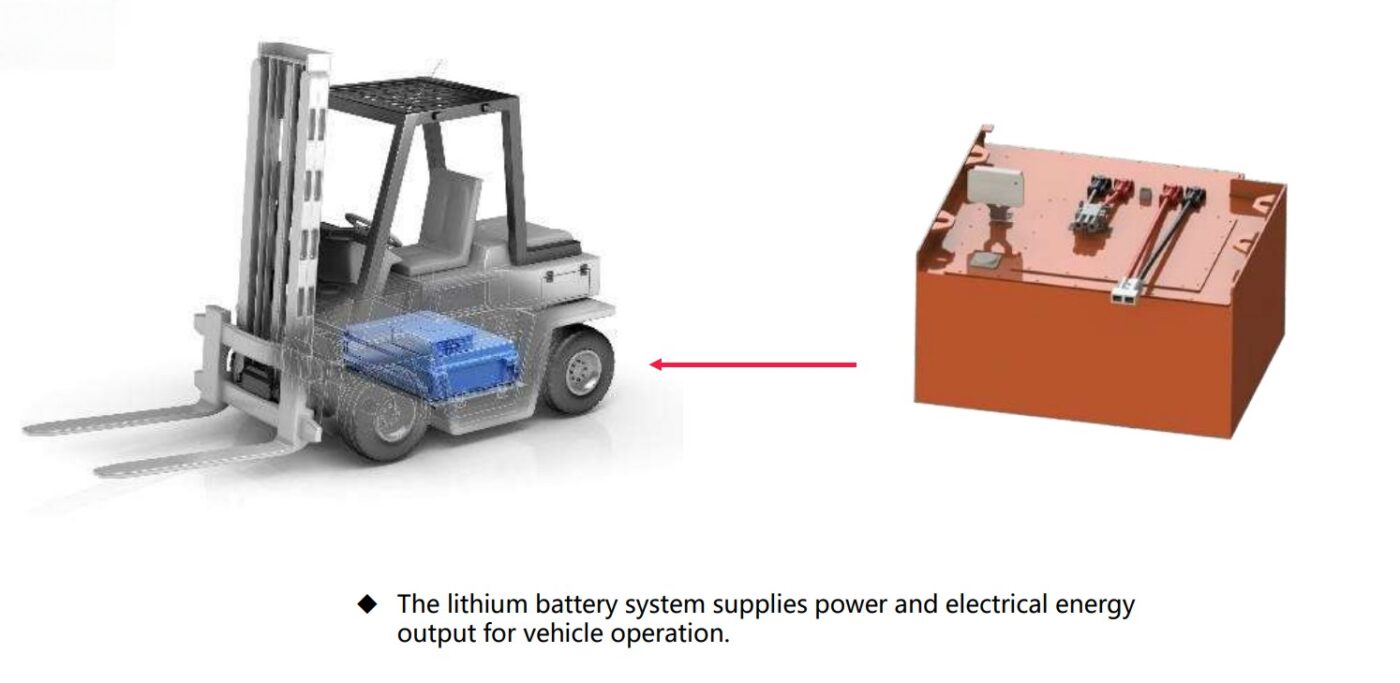

As a critical component in electric vehicles, energy storage systems, and industrial equipment, the BMS directly determines the safety, lifespan, and efficiency of battery-powered systems.
